高能激光束应该具有很好的光束空间特性，为了能在靶上获得高的辐照度，除了要求激光束要有很高的功率，还要有极好的光束质量。在影响光束质量的多种因素中，光束波面的畸变是最敏感和最重要的因素。VISIONICA公司的高阈值变形镜可校正高能激光系统(5.0 kW/cm2)的静态、动态波前畸变，特别可为近、中、远红外脉冲提供一个高精度、高分辨率的波前校正结果。
非水冷型高阈值变形镜
|
Substrate
|
Si – monocrystal
|
|
Clear aperture diameter
|
50x50 mm
|
|
Maximum stroke for each channel (not less)
|
6μ
|
|
Number of control electrodes
|
36 (6x6)
|
|
Application wavelength
|
1064nm
|
|
Maximum control voltage
|
±300 V
|
|
Resonance frequency
|
>3000 Hz
|
|
Reflecting coating
|
Multilayer dielectric R=99.96%
|
|
Optical damage threshold
|
>5 KW/cm2 (CW, intermittent <3 min continuous operation)
|
|
Surface quality
|
0.064μ
|
|
Hysteresis
|
<15 %
|
|
Operating temperature range
|
+10..+40 °C
|
|
Storage temperature range
|
-30..+70 °C
|
|
Weight (max)
|
1 kg
|

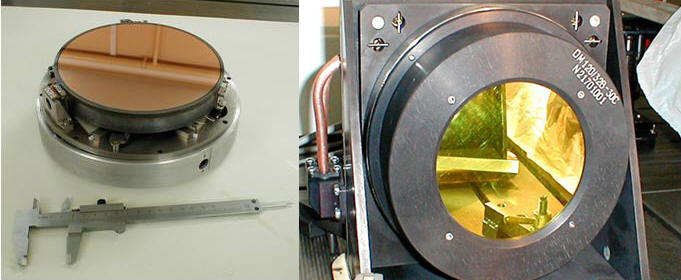

水冷型高阈值变形镜
|
变形镜型号
|
DMС-200/120-32/37B
|
DMС-200/140-37/61B
|
DMC-150/80-37B
|
|
总口径, mm
|
200
|
150
|
|
有效口径, mm
|
Up to 120
|
Up to 140
|
Up to 80
|
|
基底材料
|
Monocrystalline Si
|
|
驱动电极数
|
37
|
37/61
|
37
|
|
驱动图形
|
Hexagonal, Sectional
|
|
工作波长, µm
|
0.5….10.6 (Optional)
|
|
驱动类型
|
PZT
|
|
单电极校正量, µm, ≥
|
1.8
|
2.5/1.6
|
1.0
|
|
总校正量, µm, ≥
|
9.9
|
12
|
2.9
|
|
控制电压, ± V
|
280
|
|
一阶谐振频率, kHz, ≥
|
2.5
|
2.3
|
6.9
|
|
冷却类型
|
Water
|
|
用途
|
for high power CW and frequently pulsed lasers (t> 5…10 sec, q>2…5 kW/cm2)
|
|
选项
|
Multichannel High Voltage Drive
Adjustable Mount
Off-line Cooler
|
