美国SBIR红外公司成立于1986年，经过逾20年的发展，已经成为国际上电光测试装备的领导者，所研发产品尤其是黑体源大量的应用于美国军方红外系统测试及焦平面探测器测试等领域。其产品性能主要如下：

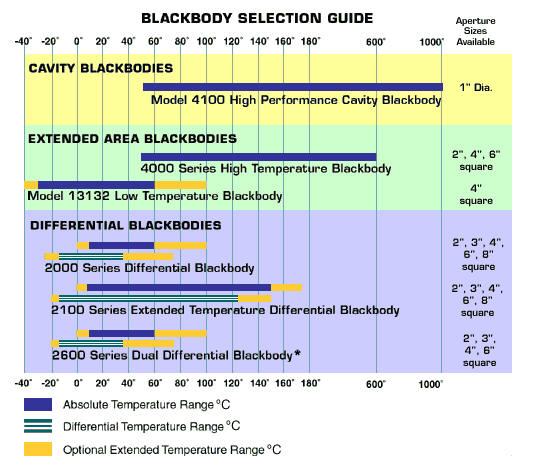

腔式黑体
低温黑体
大面源黑体
辐射面积：1 inch to 8 inch
温度范围：-40°C to +1000°C
温度分辨率：0.001°C
控制器测温精度：0.01°C
温度稳定度： 0.01°C
重点客户：洛阳014中心，中科院长春光机所
请联系我们获得更多技术细节。
SPECIFICATION
|
Available Sizes
|
4,6,8”
|
|
Standard Temperature Range C
|
-40ºC to +100 Absolute
|
|
Emissivity
|
> 0.970 (3µm to 5.5µm), > 0.950 (8µm to 14µm)
|
|
Uniformity
|
>98% of Tset – Tambient or 0.010ºC whichever is greater, over 90% of the emitting surface area
|
|
Absolute Accuracy
|
±0.010ºC for 0ºC
|
|
Stability
|
σT≤0.001ºC (0ºC to 50ºC), σT≤0.002ºC (-40ºC to 0ºC and 50ºC to 100ºC), σT≤0.003ºC (110ºC to 175ºC)
|
|
Display Resolution
|
0.001ºC or 0.0001ºC
|
|
Setpoint Resolution
|
0.001ºC
|
|
Ready Indicator Selectable
|
±0.001ºC to ±5.000ºC
|
|
SLEW RATE（Slew rates vary depending on blackbody size and environmental conditions）
|
|
Approximate Heating Rate
|
+0.40ºC/sec. at 25ºC
|
|
Approximate Cooling Rate
|
-0.20ºC/sec. at 25ºC
|
|
Settling Time
|
45-120 seconds
|
|
ENVIRONMENTAL
|
|
Operating Temperature
|
0˚C to 50˚C
|
|
Storage Temperature
|
-20˚C to 70˚C
|
|
Relative Humidity
|
5% to 95%, non-condensing
|
|
Power Requirements
|
220-240 VAC at 60/50Hz
|
|
Maximum Power Consumption
|
850W-1600W depending on size and temperature range
|
|
Approximate Blackbody Weight
|
25.0 lbs
|
|
Approximate Controller Weight
|
15.0 lbs
|
